Water Quality & Organic Carbon Series
U1600-O

Model U1600-O Online TOC Analyzer

Continuous reagent-free TOC monitoring for pharmaceutical Purified Water, Water for Injection, electronic ultrapure water, and other approved high-purity-water systems.

Brand: Blue Dragon Technology Supply & support: Blue Dragon Technology
Discuss Your Application Request a Quote Download Product Sheet
Product Overview

Purpose-built measurement, clearly presented.

The U1600-O provides continuous or scheduled low-level TOC monitoring at validated high-purity-water sample points. Its wall-mounted stainless-steel configuration combines sample-flow conditioning, matched TIC and TC channels, UV oxidation, differential conductivity detection, touchscreen operation, trending, alarms, and secure electronic records.

The analyzer is designed for pharmaceutical PW and WFI systems, electronic-grade ultrapure water, deionized-water systems, and other approved low-conductivity applications. Optional sample conditioning, hot-water cooling, reporting, remote software, and integration packages allow the delivered configuration to be matched to the process and quality-system requirements.

Distinctive Capabilities

  • Continuous or routine online TOC monitoring at validated sample points
  • Touchscreen operation with result review, trending, alarms, and electronic records
  • Large onboard record storage with serial, USB, and Ethernet connectivity
  • Optional hot-water conditioning, remote monitoring, reporting, and validation support
Performance & Technical Data

The measurement method and the values that matter.

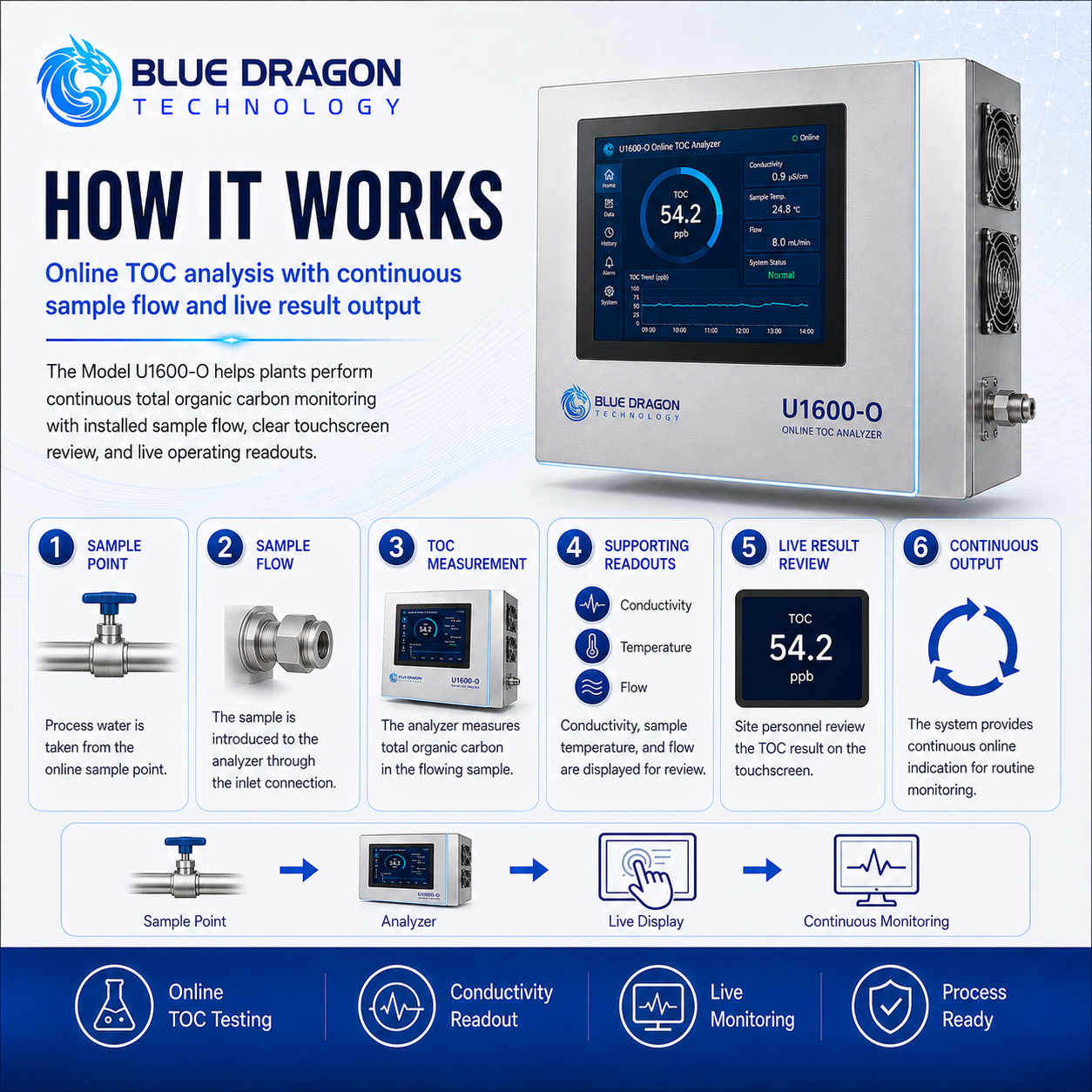

How it measures

Measurement Principle

The sample is divided into matched flow paths. The unoxidized path measures total inorganic carbon (TIC), while the second path passes through a titanium-dioxide photocatalytic reactor illuminated by dual-wavelength 185 nm and 254 nm UV light to convert oxidizable organic carbon to carbon dioxide and measure total carbon (TC). Both conductivity responses are temperature compensated, and the analyzer calculates total organic carbon as TOC = TC - TIC.

Measurement Range1-1600 µg/L carbon (1-1600 ppb) approved working range
Detection Limit1 µg/L (1 ppb)
Accuracy±3%
Repeatability≤3%
Analysis TimeApproximately 3 minutes per test
Measurement ParametersTotal organic carbon (TOC)

Complete Technical Data

Model
U1600-O
Analyzer type
Wall-mounted online total organic carbon analyzer
Measurement Principle
UV oxidation with direct/differential conductivity detection
Display resolution
0.1 µg/L (0.1 ppb)
Conductivity range
0-8.1 µS/cm
Approved sample matrix
Low-conductivity, high-purity water
Process Temperature
1-50 °C standard; optional condenser required for hotter service
Minimum inlet pressure
0.3 MPa upstream of flow control
Instrument sample flow
6-10 mL/min
Process connection
50.5 mm sanitary clamp adapter to 3 mm sample inlet tube
Internal wetted tubing
304 stainless steel
Drain
Approximately 6-10 mL/min; unrestricted and near atmospheric pressure
Storage
32 GB; more than 1,000,000 records
Interfaces
RS232, RS485, USB, and Ethernet
Display
7-inch colour touchscreen
Print output
Report printing supported; local or external printer arrangement depends on supplied configuration
Power
220 VAC ±10%; ≤120 W
Dimensions
360 W × 206 D × 250 H mm; wall-mounted
Weight
Approximately 5.8 kg including standard accessories
Housing
304 stainless steel
Operating environment
10-40 °C; relative humidity ≤85%; avoid condensation
Calibration interval
Recommended 12 months or according to the approved site program
Compliance support
USP , current Ph. Eur. 2.2.44, applicable ChP requirements, and FDA 21 CFR Part 11-supporting functions
Data integrity
Multi-level access, audit trail, and electronic signatures standard; retention and remote/database functions depend on configured software
Routine reagents
No routine acid, oxidant, or carrier gas
Warranty
12 months, subject to the sales contract
Availability
Available for application review and quotation
Industrial Use

Applications and industries.

Typical Applications

Online TOC monitoring of Purified Water and Water for Injection systemsPharmaceutical utility and production-water monitoringElectronic-grade ultrapure-water monitoring for semiconductor processesDeionized-water preparation and distribution monitoringQuality-control, validation, and pharmacopoeial system-suitability supportTrend monitoring and investigation at validated sample pointsHigh-Purity Water TOC MonitoringTotal Organic Carbon Measurement

Industries Served

PharmaceuticalPower GenerationResearch & Industrial LaboratoriesSemiconductor & ElectronicsWater & Wastewater
Engineering & Integration

Built for specification, installation, and long-term operation.

Application engineering establishes a representative high-purity-water sample, controlled pressure and flow, compliant drainage, suitable temperature, electrical and network services, validation scope, and the record-management controls required by the site quality system.

Sample basisOnline low-conductivity water at a validated sample point
Process interface0.3 MPa minimum upstream pressure; 6-10 mL/min instrument flow
Temperature basis1-50 °C standard; optional condenser for hotter service
IntegrationRS232, RS485, USB, Ethernet, alarms, and configurable reporting

System Configuration

  • StandardWall-mounted analyzer with stainless-steel enclosure, touchscreen controller, matched TIC and TC channels, UV photocatalytic reactor, conductivity sensors, storage, alarms, and communications
  • StandardLocal electronic records, trend review, user management, audit trail, and electronic-signature functions
  • OptionalHot-water condenser, sample-conditioning panel, remote software, printer/report package, integration package, and standards or validation package
  • Order Specific: Delivered voltage, interface configuration, accessories, report format, software functions, and qualification documents are governed by the order and serial-number-specific records
  • StandardWall-mounted U1600-O analyzer with 304 stainless-steel enclosure, 7-inch touchscreen, matched TIC and TC flow paths, UV reactor, conductivity detection, internal storage, alarms, and standard communications
  • Standard50.5 mm sanitary clamp adapter to a 3 mm sample inlet tube, with unrestricted atmospheric-pressure drain

Sensor & Sample Interface

  • StandardConnect through the supplied 50.5 mm sanitary clamp adapter and 3 mm sample inlet arrangement
  • StandardRoute the drain openly, without restriction or backpressure, to an approved waste point
  • StandardKeep the inlet at or below 50 °C unless the approved condenser is installed and verified
  • Application DependentUse a low-TOC-compatible particle filter of 60 µm or smaller when visible insoluble particles may be present
  • Application DependentSample isolation, pressure regulation, filtration, cooling, fast-loop design, and sample return require review for the process conditions

Installation & Utilities

  • StandardMount the analyzer vertically using the serial-specific mounting template, with service access and ventilation clearance
  • StandardProvide grounded 220 VAC power matching the delivered nameplate; standard load is no more than 120 W
  • StandardInstall in a clean, dry, non-hazardous environment at 10-40 °C and relative humidity no more than 85%, without condensation
  • StandardProvide safe sample isolation and an accessible unrestricted drain near atmospheric pressure
  • OptionalInstall the condenser where process-water temperature can exceed 50 °C
  • Application DependentOutdoor, washdown, corrosive-vapour, conductive-dust, or hazardous-area locations require a separately approved installation

Controller & Communications

  • StandardLocal control, result review, trending, alarms, audit trail, electronic signatures, and storage for more than 1,000,000 records
  • OptionalRemote software or app, external printer or report package, database functions, and alarm or site-system integration
  • Order Specific: Protocol, network settings, signal mapping, report templates, retention, backup, and cybersecurity controls must be confirmed and validated for the delivered configuration

Calibration & Quality Control

  • StandardCommission with low-TOC water, approved calibration standards, verification, and leak and flow checks
  • StandardPharmacopoeial system suitability may use TOC water, sucrose, and 1,4-benzoquinone standards within expiry
  • StandardRecord as-found and as-left results, standard identity, lot, expiry, acceptance criteria, operator, and reviewer
  • Application DependentCalibration range, verification frequency, system-suitability execution, and acceptance limits must be defined by the validated site method and quality system

Cleaning & Maintenance

  • StandardInspect sample and drain flow, leakage, tubing, filters, fans, grounding, system clock, data backup, and report functions at the approved preventive-maintenance interval
  • StandardReplace the dual-wavelength UV lamp at about six months of continuous service or justify an extension through an approved risk-based program
  • StandardReplace approved peristaltic-pump tubing at about 12 months or according to condition and operating duty
  • StandardVerify performance after maintenance, fluid-path cleaning, lamp or tubing replacement, or extended shutdown
  • OptionalAnnual service kit, condenser service kit, particle filters, sanitary gasket and clamp, calibration standards, and system-suitability kit
  • StandardInternal service is restricted to trained personnel using serial-compatible parts and approved procedures

Interferences & Application Considerations

  • StandardOnly trained personnel familiar with electrical equipment, pressurized high-purity-water sampling, and the site quality system may install, operate, or service the analyzer
  • StandardIsolate electrical power before opening a service panel or replacing a fuse, UV lamp, or pump tube
  • StandardIsolate and depressurize the process sample before disconnecting tubing or fittings
  • StandardDo not connect the analyzer to an uncontrolled high-pressure source and do not restrict the drain
  • Application DependentThe conductivity method is not intended for wastewater, concentrated process streams, high-salt matrices, suspensions, or samples outside the approved range without written application review
  • Application DependentTOC does not replace microbiological, endotoxin, or other required pharmaceutical-water tests
Application Review

Application Engineering Notes

Delivered configuration

The analyzer nameplate, order confirmation, packing list, factory test report, calibration certificate, and approved model datasheet define the delivered hardware, validated range, connections, software settings, and analytical method.

Sample integrity

The U1600-O is designed for low-conductivity, high-purity-water matrices. The approved sampling method should control location, transport time, temperature, pressure, contamination, flushing, and sample representativeness.

Data integrity and compliance

User access, audit-trail, electronic-signature, storage, and communication functions support regulated workflows, but compliance depends on the complete validated system and site controls.

Project Delivery

Project Integration & Support Scope

Blue Dragon reviews the measurement objective, interfaces, documentation, commissioning, and lifecycle requirements as part of project configuration. The scope below identifies the principal items to confirm before order placement.

Measurement Objective
Continuous or scheduled low-level TOC monitoring for pharmaceutical Purified Water, Water for Injection, electronic ultrapure water, deionized water, and other approved low-conductivity high-purity-water systems.
Signal Outputs
The standard specification includes RS232, RS485, USB, and Ethernet interfaces, local alarms, trending, secure electronic records, and report support. External printer, remote software, database, and site-system interfaces are option or order dependent.
Data Integration
Local functions include result review, trending, storage for more than 1,000,000 records, user management, audit trail, and electronic signatures. Protocols, report templates, retention, backup, network settings, remote access, and cybersecurity controls must be confirmed and validated for the delivered configuration.
Alarms & Diagnostics
The analyzer provides local alarms and operating status for the configured system. External alarm mapping, remote functions, database behavior, report workflow, and site-system integration are order specific and must be verified during qualification.
Documentation
The package may include the product sheet, operating manual, factory test report, calibration certificate, approved model datasheet, data-integrity and software information, validation or qualification documents where ordered, and commissioning records.
Commissioning Support
Commissioning can include mounting and utilities review, leak and flow checks, low-TOC water and approved standards, calibration verification, pharmacopoeial system suitability where applicable, interface and report checks, account setup, data-integrity review, and user training.
Lifecycle Support
Lifecycle support covers the UV lamp, pump tubing, filters, sample and drain paths, calibration and system-suitability standards, data backup, software and report functions, annual service items, troubleshooting, spare parts, and authorized repairs.
Online Analyzer Configuration

Sample System & Online Analyzer Readiness

Reliable online measurement depends on the process interface as well as the analyzer. Confirm the following application data before final configuration and quotation.

Sample Type & Phase
Low-conductivity high-purity water, including pharmaceutical PW, WFI, electronic ultrapure water, deionized water, and other approved water matrices. Wastewater, concentrated process streams, high-salt matrices, and suspensions require written application review and are normally outside the approved method.
Measurement Range
Confirm expected TOC level, alert and action limits, required reporting units, calibration range, system-suitability requirement, and applicable site or pharmacopoeial procedure. The approved working range is 1-1600 micrograms/L carbon with a 1 microgram/L detection limit.
Sample Conditions
Provide sample pressure, temperature, conductivity, cleanliness, particle content, sanitization temperature, organic load, flow availability, and sampling-point arrangement. Standard sample temperature is 1-50 degrees C; hotter service requires the approved condenser.
Sample Handling
Define sanitary take-off, safe isolation, pressure and flow control, 3 mm sample tubing, flushing, low-TOC-compatible materials, optional 60 micrometre or smaller particle filtration, cooling where required, unrestricted drain, and representative sample transport.
Installation Area
Confirm wall-mount location, clean and dry non-hazardous environment, 10-40 degrees C ambient, service and ventilation access, proximity to the loop, drain location, network access, and any washdown, corrosive-vapor, or outdoor limitations.
Utilities
Provide grounded 220 VAC matching the delivered nameplate, at least 0.3 MPa upstream of the controlled sample arrangement, 6-10 mL/min analyzer flow, unrestricted near-atmospheric drain, communication cabling, approved standards, and condenser utilities when ordered.
Response Requirement
Define continuous monitoring, scheduled verification, quality investigation, release support, alarm response, or trend monitoring. The published analysis time is approximately three minutes per test, excluding sample transport and flushing.
Integration Requirement
Confirm RS232, RS485, USB, and Ethernet use, network settings, alarms, report and printer configuration, remote or database options, historian or LIMS workflow, user roles, audit trail, electronic signatures, data retention, backup, and cybersecurity responsibilities.
Commissioning Requirement
Verify mounting, grounded power, safe isolation, sample pressure and 6-10 mL/min flow, unrestricted drain, leak integrity, low-TOC water, calibration standards, verification and system suitability as applicable, interfaces, alarms, reports, user accounts, audit trail, backup, training, and handover documents.
Technical Resources

Product Documents

Product Sheet first, followed by the Brochure, Manual, and any additional technical documents.

Application Engineering

Discuss your measurement application.

Share the sample, measurement range, operating conditions, project location, and timeline. Blue Dragon Technology will review the application and recommend the appropriate configuration.
